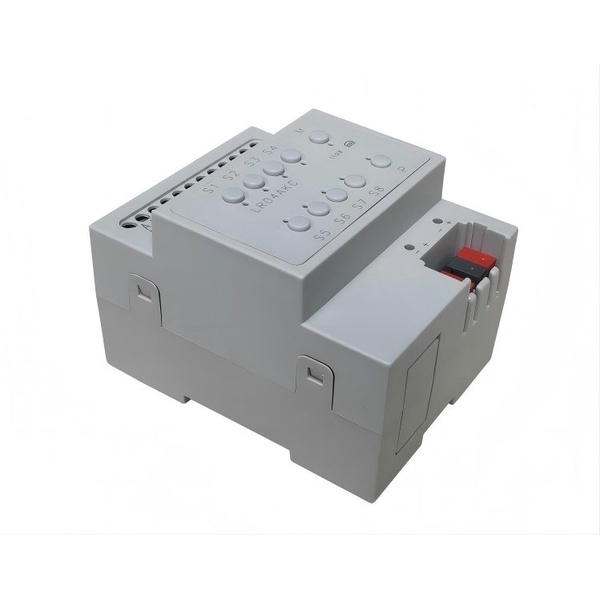

KNX actuator|4 channel KNX curtain controller|LR04AKC

Profile

● This 4-channel curtain controller operates motors via KNX signal input.
● Each single-circuit output supports up to 6A current.
● Adjustable motor rotation timing for both forward and reverse directions.

Features

● Compatible with standard KNX signals and other inductive loads
● High-power magnetic latching relay with zero standby power consumption
● Low power consumption and surge current resistance exceeding 170A
● Long lifespan, compact size, and easy DIN-rail installation
● Manual override for relay operation is available as an option

Technical Parameters

Datasheet:

specification LR04AKC.pdf
