Profile
● This high-power switching actuator performs high-power control via KNX signal input.
● 8 independent channels, each capable of delivering up to 10A maximum output per circuit.
● Utilizes high-power magnetic latching relay technology.
● Includes two dry contact inputs and one 24V DC signal input.
Features
● Compatible with standard KNX signals and other inductive loads
● Equipped with high-power magnetic latching relays for zero standby power consumption
● Low operational power consumption with surge current resistance exceeding 170A
● Long service life, compact design, and easy DIN-rail installation
● Optional manual override function for relay operation
● Available in white or black metal housing
Technical Parameters
Model No | LR08AK |
Brand | LAMMIN |
Input Signal | KNX signal |
Input Voltage Range | KNX EIB DC 21-30V |
Frequency Range | 50/60Hz |
Max Load Current | 10A/CH*8 |
Max Output | 20A 250VAC,4000W, 3*104 (fluorescent lamp)5HP 250VAC 3*104( motor load) |
Min Load | 60W |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 72*88*65 |
Installation | 35MM Din-rail |

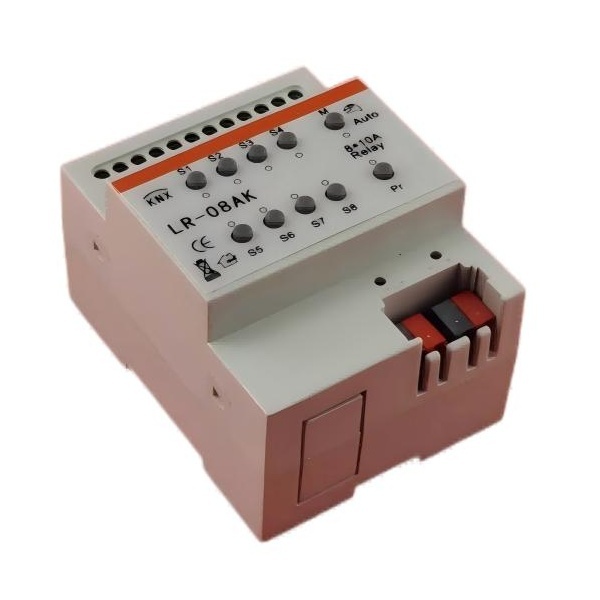

Photo |
|
Datasheet:
specification LR08AK.pdf
