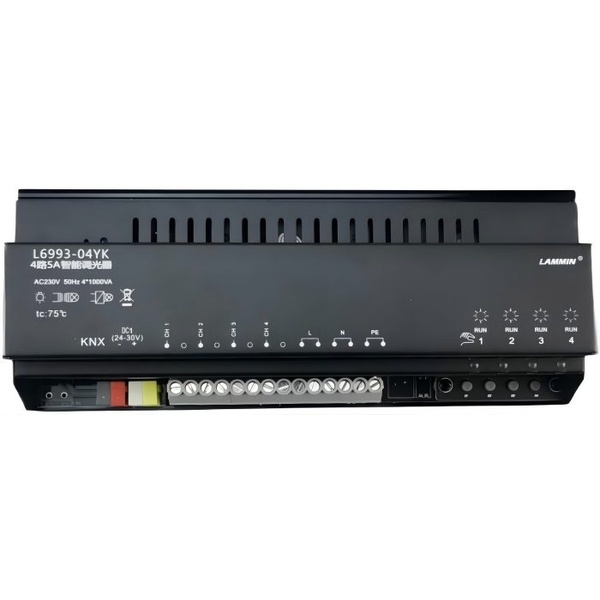

KNX dimmer|4 channel 5A KNX dimmer|L6993-04YK

Profile

● The dimming power amplifier employs leading-edge phase control technology, receiving KNX signals and converting them into high-power 0-220V TRIAC dimming output.
● Compatible with incandescent lamps, dimmable LED lamps, and low-voltage halogen lamps with electronic transformers.
● Each channel delivers an output power of up to 1000W.

Features

● Featuring a manual dimming button, metal housing for enhanced heat dissipation, multi-level temperature protection, and flicker-free dimming module
● Equipped with signal input buffer design for smooth dimming performance (timing ≥220µs)
● Comprehensive protection includes short-circuit, overload, and over-voltage safeguards
● Long lifespan, compact size, and compatible with 35mm DIN-rail installation
● Plug-in design for signal input terminals ensures easy and reliable connection

Technical Parameters

Datasheet:

specification L6993-04YK.pdf
