KNX dimmer|8 channel 1-10V KNX dimmer|L6293-08K
Profile
●KNX convert to 1-10V output , 8 channels 1-10V output with manual button
●DC24-30V DC power supply
Features
●8*DC 1-10V/50mA
●AC voltage input, safe and reliable
●Short out protection, overload and over-voltage protection
●Long life span, small size and 35mm DIN-rail installation
Technical Parameters
Model No | L6293-08K |
Brand | LAMMIN |
Input Signal | KNX signal |
Input Voltage | DC 30V |
Frequency Range | 50/60Hz |
Dimming Output Power | 8*DC 1-10V/50mA |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 72*88*65 |
Installation | 35mm DIN rail |

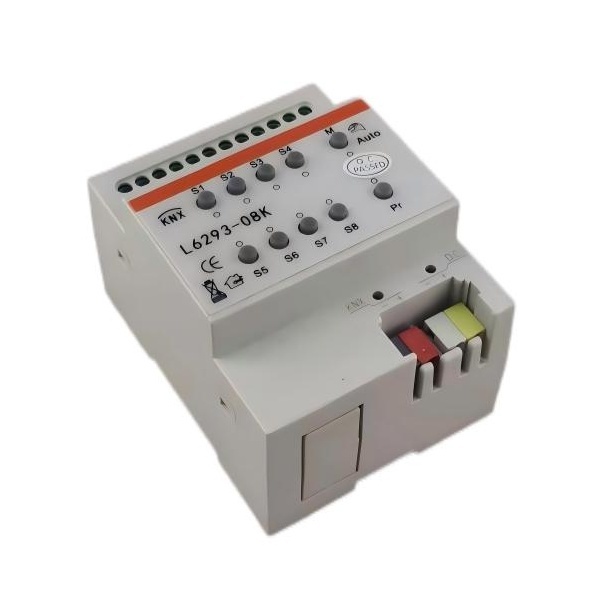

Photo |
|
Datasheet:
specification L6293-08K.pdf
