KNX relay|1-10V KNX dimmer with 20A relay|L6293-04CK|L6293-08CK
Profile
●KNX 4 channel 1-10V output with 10A relay inside.
●4 channel on/off control strips, manual cut-off, DC24-30V DC power supply
Features
● Independent 4*20A on/off control
●AC voltage input, safe and reliable
●Short out protection, overload and over-voltage protection
●Long life span, small size and 35mm DIN-rail installation
●Signal input terminal plug design, easy connection
Technical Parameters
Model No | L6293-04CK | L6293-08CK |
Brand | LAMMIN |
|
Input Signal | KNX signal |
|
Input Voltage | DC 24V-30V |
|
Frequency Range | 50/60Hz |
|
Dimming Output Power | 4*DC 1-10V/20mA | 8*DC 1-10V/20mA |
On/Off Output Power | 4*20A | 8*20A |
Certification | CE UL |
|
Working Temp | -20℃~+50℃ |
|
Warranty | 3 years |
|
Size(L*W*H)MM | 72*88*65 |
|
Installation | 35mm DIN rail |
|

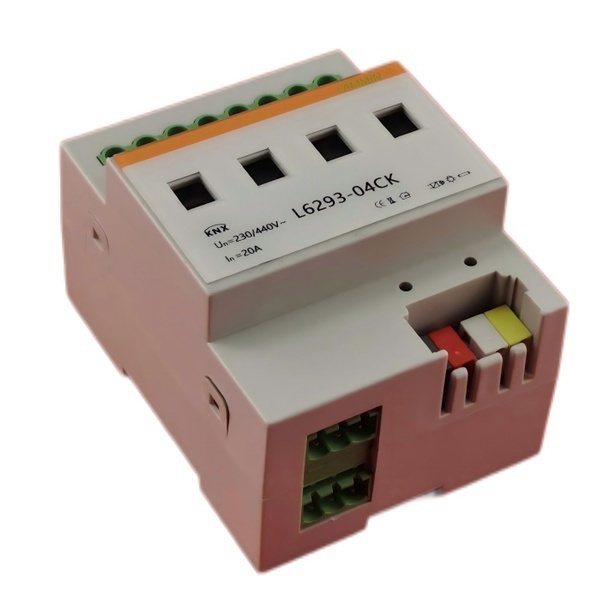

Photo |
|
Datasheet:
specification L6293-04CK.pdf
