Profile
●KNX-Wiz is a Wiz platform with built-in wireless communication chip
●It can control the lighting equipment through WiFi/ Bluetooth signal.
●One-button control to realize the light switch, brightness change, and the transformation of 9 scene modes, more safe and reliable;
Features
●Built-in wireless communication chip
●WIZ terminal is configured with 9 scenarios
●9 groups of addresses can be combined for cyclic control
●Using WiFi/ Bluetooth signal communication, stable and fast
●Standard size, easy for ceiling installation.
Technical Parameters
Model No | L91KWB-09 |
Brand | LAMMIN |
Input Signal | KNX/WiFi/Bluetooth signal |
Input Voltage | 24-30V DC |
Frequency Range | 2400-2483.5 MHz |
Max Distance | 15m |
Max Output | 1.5W |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 50*50*25 |
Installation | Ceiling mounted |

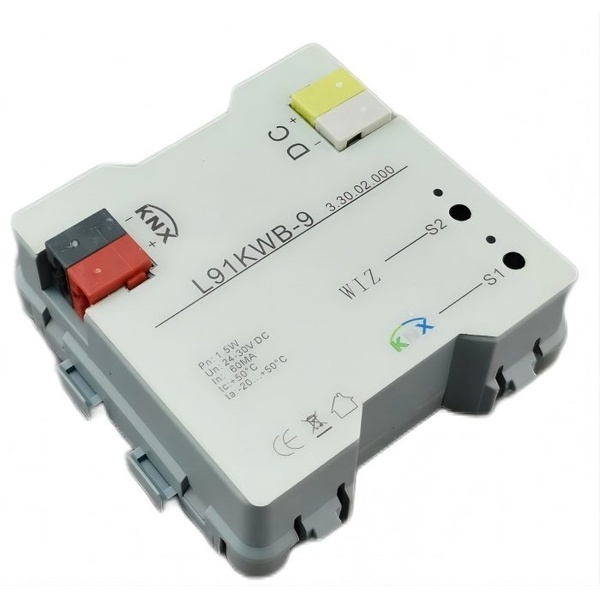

Photo |
|
Datasheet:
specification L91KWB-9.pdf
