KNX BUS device|KNX BUS power supply|LMK-960
Profile
● This KNX power supply unit provides and monitors the operating voltage for EIB/KNX systems.
● Its output features two sets of terminals: one for EIB bus power and signal transmission, and the other for auxiliary power output.
● Operating on 30 V DC, the unit includes a built-in choke (reactor).
● When an external choke is connected to the auxiliary power terminals, this output can also function as a bus power supply while retaining signal transmission capability.
Features
●Rated current of EIB and auxiliary power output 960 mA, short-circuit protection
●With reset reset button (for EIB/KNX power supply re-output)
Technical Parameters
Model No | LMK-960 |
Brand | LAMMIN |
Input Voltage | 185-264VAC 50/60Hz |
Output Current | 960 mA |
EIB Output Voltage | 30 V DC +1/–2 V, SELV |
Auxiliary Power Output | 1 way (without reactor) |
Auxiliary Power Output Voltage | 30 V DC +1/–1 V, SELV |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 72*88*65 |
Installation | 35mm DIN rail |

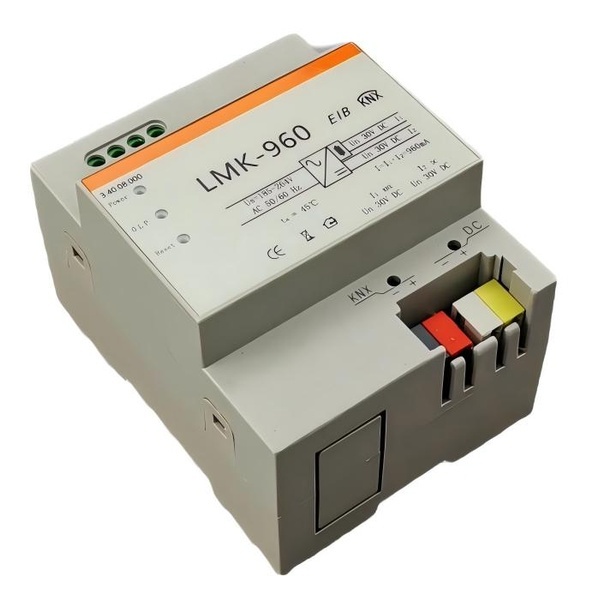

Photo |
|
Datasheeet:
specification LMK-960.pdf
