KNX gateway|KNX-IP gateway|L91KP-ZH2
Profile
●KNX/IP gateway is a specially designed KNX intelligent building control system
●It is used to connect KNX bus and LAN, as an interface between KNX and IP network
●The gateway can convert TCP messages into KNX messages from LAN devices, and send to KNX bus to realize the control of KNX devices.
Features
● Support TCP/IP communication interface protocol, working in TCP server mode
● Convert TCP packets into KNX messages to control KNX devices
● Transparent forwarding of communication control messages
● Support WinSwitch routing mode connection
Technical Parameters
Model No | L91KP-ZH2 |
Brand | LAMMIN |
Input Signal | KNX/EIB signal |
Input Voltage | DC 24V-30V |
LAN Interface | RJ45 |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 72*88*64 |
Installation | 35mm DIN rail |

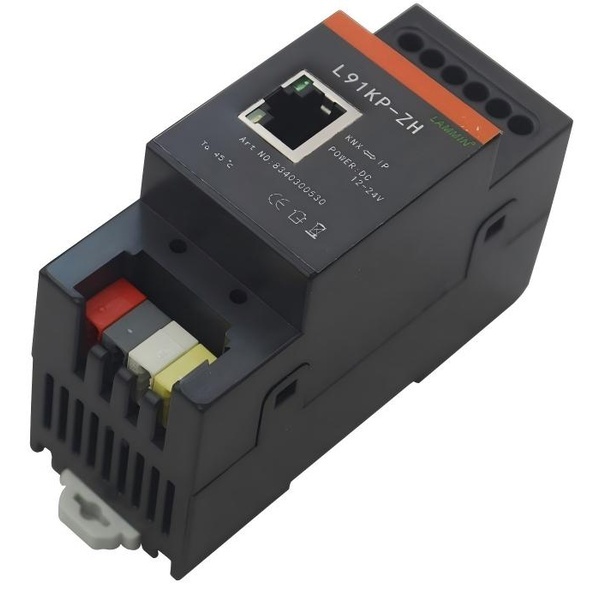

Photo |
|
Datasheet:
specification L91KP-ZH2.pdf
