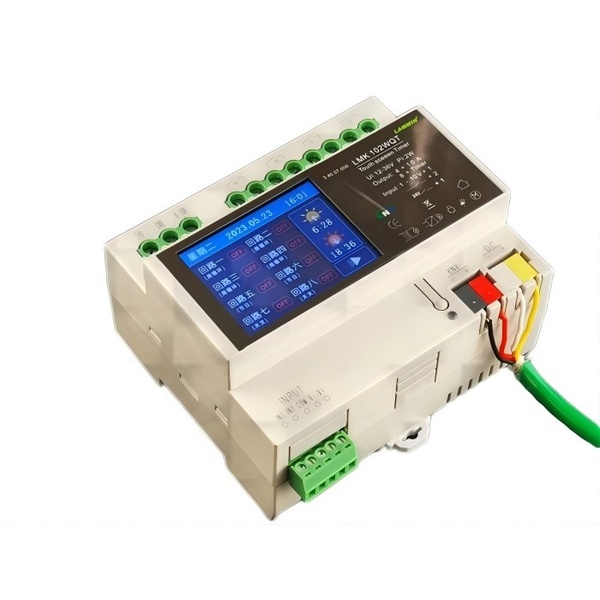

KNX timer|Din rail color astronomical clock timer|LMK102WQT

Profile

●The color screen timing actuator is a module with multi-channel timing function with color touch screen.

●The timing channel has a variety of options for astronomical clock, holiday and ordinary timing, and It can be modified through the color screen setting.

●The module has built-in multi-way relay switch actuator, with dry contact input and fire control input, analog DC 1-10V input, and the corresponding output function can be configured according to the actual input analog voltage (sensor).

●The BUS connection is directly via KNX terminal.

●The module has a compact design and is rail-mounted, electrically connected by screw terminal posts on the input and outputs

Features

●Timer built-in 2.4-inch color touch screen l

●Timer standard time can be configured by KNX bus or set directly on the touch screen

●With 8 timing channels, including astronomical clock*2, holiday clock*2, ordinary clock*4 l

●Sunrise and sunset astronomical clock is automatically calculated by entering latitude and longitude, and can be set to open and close in advance or postponed l

●Each timing channel has 2 channel time settings l

●Input detection has three types, includes 2-channel dry contact, 1-channel fire signal, 1 channel 1-10V analog  l

●Independent 4-channel 10A switching output l

●The equipment can operate independently, and it can directly control the 4-channel 10A switch.

●Manual control output via touch screen without waiting for the setting time

Technical Parameters

Datasheet:

specification LMK-102WQT.pdf
