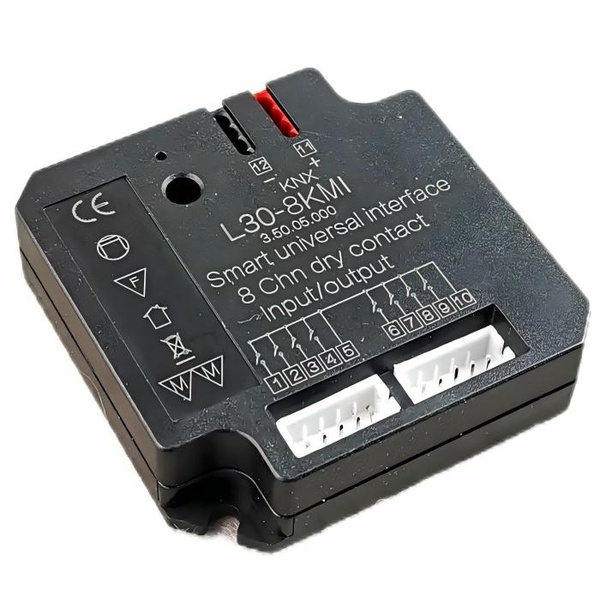

KNX Sensor|8 channel input and output module MINI|L30-8KMI

Profile

●The module can be connected to 8 external signals, converted into KNX commands, or output signals according to KNX commands,

●The module is compact, can be installed in the 86 bottom box

● Bus powered, through ETS settings, the input points can be set as input or output functions, can be configured as sensors, or multi-command transmitters

Features

● KNX bus power supply, Each input can set input or output control;

●ETS setting function

●When used as an output method, it can provide up to 3.2V and 5mA current.

●Functions: 1. Output PWM signal 2. Output high/low level 3. The input terminal can be connected to the actual judgment of the change of high level and low level to trigger the corresponding setting signal to control the bus device 4. One signal at the input end can be set to trigger up to 4 control signals to be output to the bus at intervals, which can meet the needs of controlling multiple different devices at the same time to achieve linkage 5. Optimize the sensor access signal, disconnect and close the command, set the master-slave mode, and send the slave signal to the host for processing

Technical Parameters

Datasheet:

specification L30-8KMI.pdf
