Profile

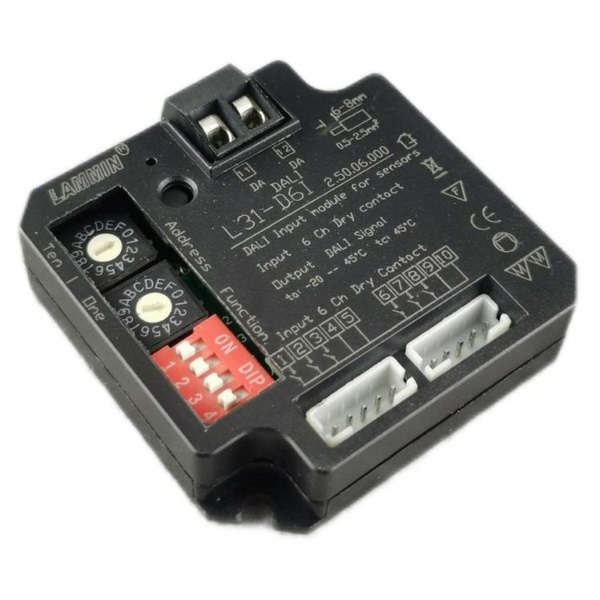

●The module can connect 6 channel dry contact signals and convert to DALI commands.
●No debugging, the dry contact function can be set through DIP switches on the module.
●The functions can be monitored by DALI standard software.
Features
●Each channel input can control 64 DALI devices, 16 groups, 16 scenes, etc.
●No debugging, all functions are set through Dip
●Dip switch dry contact function (send command to set group scenario, scene, group, single address)
●The module can be installed in the 86 bottom box.
Technical Parameters
Model No | L31-D6I | L31-D4I | L31-D2I |
Brand | LAMMIN |
|
|
Input Signal | 6*CH dry contact signal | 4*CH dry contact signal | 2*CH dry contact signal |
Input Voltage Range | 16V DC |
|
|
Frequency Range | 50/60Hz |
|
|
Max Load Current | 4mA Max (@16v DC) |
|
|
Output Signal | DALI signal |
|
|
Software | DALI standard software | LAMMIN DALI Master | LAMMIN DALI Master |
Certification | CE |
|
|
Working Temp | -20℃~+50℃ |
|
|
Warranty | 3 years |
|
|
Size(L*W*H)MM | 50*50*13 |
|
|
Installation | 86 bottom box |
|
|
Datasheet:
specification L31-D6I.pdf
