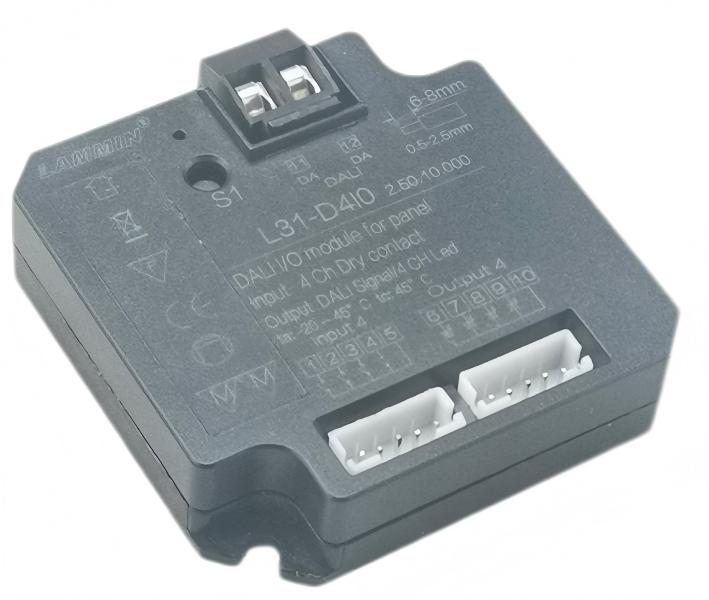

DALI sensor|DALI 4 channel I/O dry contact|L31-D4IO

Profile

●4 channels of dry-contact input/output module, can connect to any dry-contact and convert to DALI commands,

●At the same time, the module linkage outputs 4 open-circuit LED indicator drive signals, can be connected to the indicator light of the dry-contact, indicate the status of related groups, scenes, and single addresses in the DALI circuit,

●Dry contact with small size, installed in the 86-bottom box,

●Dry-contact functions are set through DALI Master software.

●Each dry contact can be flexibly set, long press, short press, can issue various functions such as single address, group, scene, group scene, etc

Features

● DALI bus powered; dry contact input.; LED drive output.

● Each contact has a compound function, which can produce short and long press control actions;

● Each contact can be independently programmed, and can control 64 DALI devices, 16 groups, 16 scenes, etc.;

● Each contact can be independently programmed to turn on, off, up, down, set scene and other action combination functions;

Technical Parameters

Datasheet:

specification L31-D4IO.pdf
