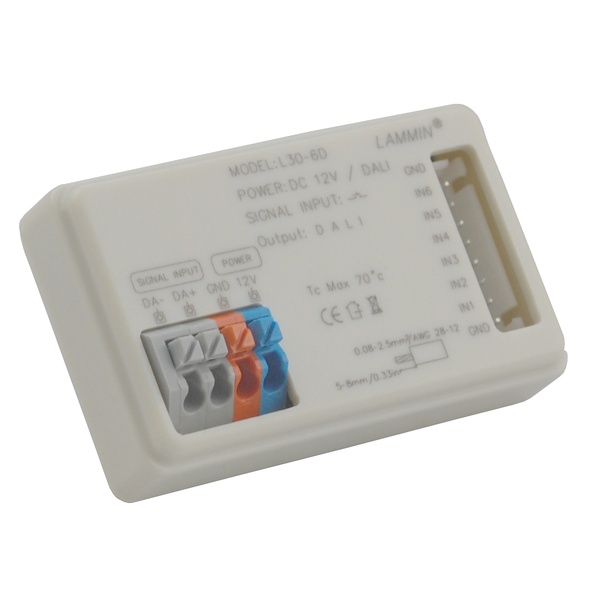

DALI sensor|DALI 6 channel dry contact|L30-6DDZ
Profile
●The DALI dry contact is small enough to fit in an 86-bottoming case;
● With 6 contacts and 2 common contacts
Features
●Standard DALI signal input
●Low voltage power supply DC12V
●Each contact function can be configured by software
●Manually set the address
●Small size, easy to install
Technical Parameters
Model No | L30-6DDZ |
Brand | LAMMIN |
Input Signal | DALI signal |
Input Voltage | DC 12V |
Contacts | 6 |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 30*40*15 |
Datasheet:
specification L30-6D.pdf
