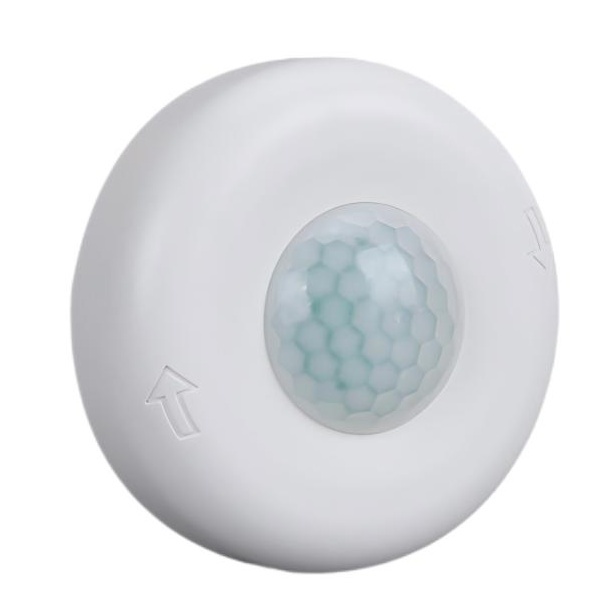

DALI sensor|DALI ceiling detector|L30-RX

Profile

●DALI multifunctional sensor is equipped with human infrared sensor chip and high-precision ambient illumination sensor.

●Advanced algorithms  convert the inductive signals into corresponding DALI commands to control DALI equipment on the BUS.

The sensors can be configured as DALI human motion detection function or DALI Illuminance sensor function.

A: DALI human motion detection function: sensing human, issuing single address, group scene, broadcast command;

For example: You can select a scene from 0 to 15 as the trigger condition for action 1 and 2. If you select (Scene 5, Action 1), the sensor will trigger action 1 only when scene 5 appears . Later on, the sensor will execute action 2 accordingly.

Similar with PIR function: the human motion detection function is activated when the ambient illumination is insufficient.

B: Illuminance sensor function: turn on the lamp when the illuminance is insufficient, and turn off the lamp automatically when the ambient brightness is high.

Constant illumination function, control the light equipment in DALI BUS to make the ambient illumination remains constant.

Features

●DALI human motion detection function and illumination sensor function

●DALI human motion detection function can be disabled by DALI scene commands.

●Human motion detection function can be turned on and off through illuminance threshold control.

●When sensing , can issue brightness, scene and other commands to single address or group.

●Constant illumination function, continuous  send commands to step control the dimming of the lamps on the DALI BUS.

●Illuminance control function, lower than a certain illuminance lights on or higher than a certain illuminance lights off.

Technical Parameters

Datasheet:

specification L30-RX1.pdf
