Profile

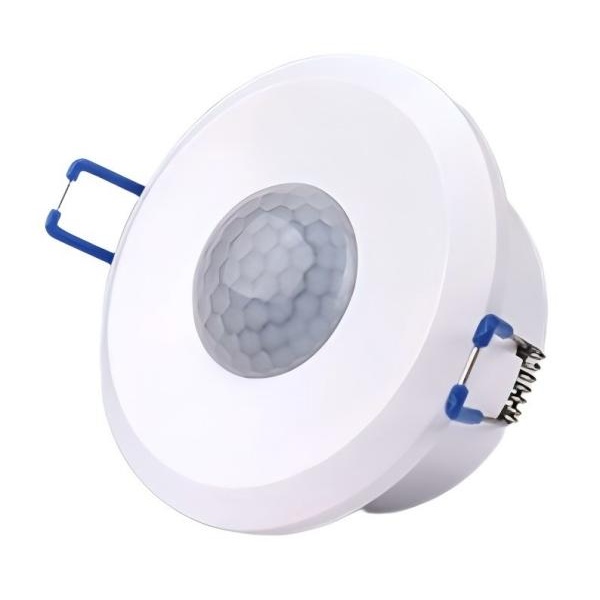

●PIR sensor module for DALI and DALI2 lighting system
●DALI multifunctional sensor is equipped with human infrared sensor chip and high-precision ambient illumination sensor.
●Movement detection(PIR) instance type3(IEC62386-303) and illumination measurement instance type 4 (IEC62386-304)
A: Movement detection function: sensing human, issuing single address, group scene, broadcast command;
B: Illuminance sensor function: turn on the lamp when the illuminance is insufficient, and turn off the lamp automatically when the ambient brightness is high.
Constant illumination function, control the light equipment in DALI bus to make the ambient illumination remains constant.
●Supply via DALI bus, no additional power supply
●Flush mounted
Features
●DALI-2 input devices in accordance with IEC62386-101, IEC62386-103, suitable for DALI-2 application controllers, not compatible with DALI-version 1 systems.
●Occupancy sensor in line with IEC62386-303:2017 standard, with passive infrared detection function, can also detect subtle movements.
●Illuminance sensor in line with IEC62386-304:2017 standard, can measure 0~1024ux, resolution 1lux.
●Refer to the IEC62386-304:2017 standard temperature sensor, which can measure -20~50°C with a resolution of 0.125°C.
●Refer to the humidity sensor of IEC62386-304:2017 standard, which can measure 0~100% RH with a resolution of 0.125%RH.
●Powered by DALI-2 bus, typically 4mA, max. 9mA.
●Small size, suitable for installation
Technical Parameters
Model No | L30-RQ-1 |
Brand | LAMMIN |
Input Signal | DALI signal |
Input Voltage Range | 9-24V DC |
Max Load Current | 9mA Max (@16.5V DC) |
Hold Time | 0S--85Min |
Detection range (radius) | 3-8m |
Detection Angle | <90° |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | Φ65*40 |
Installation | Flush mounted |
Datasheet:
specification L30-RQ-1.pdf
