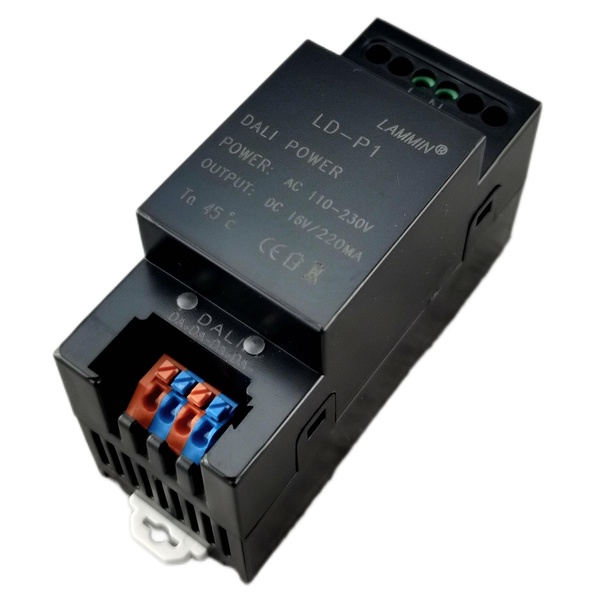

DALI BUS device|DALI Bus power supply|LD-P1
Profile
●The DALI BUS power supply provides 245mA current for DALI devices or control modules without independent power supply.
●Each DALI BUS is equipped with at least one DALI BUS power supply.
●Black and gray 2 color as optional.
Features
●Wide voltage range input to meet the needs of different countries
●Press type spring snap terminal
●Pass DALI testing
●Small size, Din rail and convenient installation
●Signal indicator to monitor various working conditions.
Technical Parameters
Model No | LD-P1 |
Brand | LAMMIN |
Input Signal | 0-220V signal |
Input Voltage | AC 110-240V |
DALI BUS Voltage | 16V |
Frequency Range | 50/60Hz |
DALI BUS Voltage Current | 245mA |
Max Output | 5W |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 88*37*65 |
Installation | 35mm DIN rail |
Datasheet:
specification LD-P1.pdf
