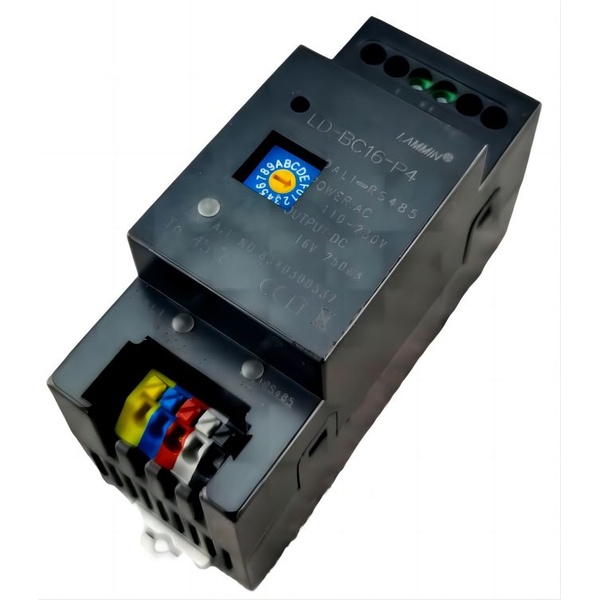

DALI gateway|DALI-RS485 bidirectional gateway|LD-BC16-P4|LD-BC16-P4T|LD-BC16-P4M
Profile
●LD-BC16-P4 is R485-DALI converter,bidirectional send command;
●Manual gateway address setting, up to 16 gateway addresses with DALI power supply.
Features
●High voltage power supply (AC220V)
●With manual gateway address setting, up to 16 gateway addresses (0-F)
●With receiving indicator (one flash/ one command)
●Small size, easy to install
Technical Parameters
Model No | LD-BC16-P4 | LD-BC16-P4T |
Brand | LAMMIN |
|
Input Signal | R485 signal |
|
Input Voltage | AC 220V |
|
Output Signal | DALI signal |
|
Color temperature Control | N | Y |
Gateway Address | 16*addresses(0-F) |
|
Certification | CE |
|
Working Temp | -20℃~+50℃ |
|
Warranty | 3 years |
|
Size(L*W*H)MM | 54*88*65 |
|
Installation | 35mm DIN rail |
|
Datasheet:
specification LD-BC16-P4.pdf
