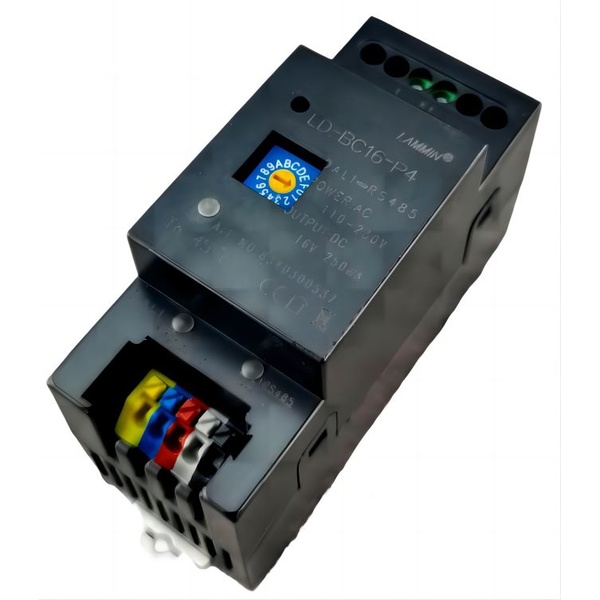

DALI sensor|DALI-MODBUS bidirectional gateway|LD-BC16-P4M
Profile
●LD-BC16-P4M is DALI-MODBUS converter,bidirectional send command;
●Manual gateway address setting, up to 16 gateway addresses with DALI power supply.
Features
●High voltage power supply (AC220V)
●With manual gateway address setting, up to 16 gateway addresses (0-F)
●With receiving indicator (one flash/ one command)
●Small size, easy to install
Technical Parameters
Model No | LD-BC16-P4M |
Brand | LAMMIN |
Input Signal | MODBUS signal |
Input Voltage | AC 220V |
Output Signal | DALI signal |
Gateway Address | 16*addresses(0-F) |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 54*88*65 |
Installation | 35mm DIN rail |
Datasheet:
specification LD-BC16-P4M.pdf
