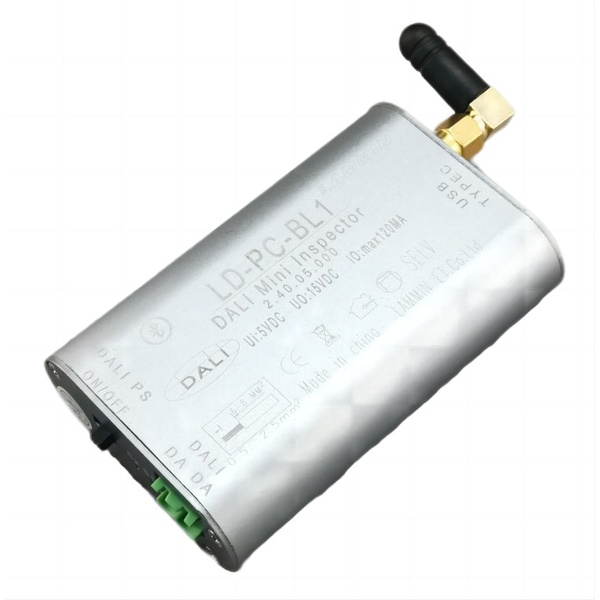

Profile
●Connected to the computer through Bluetooth;
●64 DALI devices can be controlled by the computer to realize dimming, switching, setting scenes, grouping and other functions;
Features
●With DALI bus power supply;
●DALI device address setting (only one can be assigned at a time)
●Set DALI device group, scenario,
●Can set color temperature, brightness scene
●Broadcast commands test devices on the DALI bus
●Luminance broadcast test
●Color temperature broadcast test
●Scenario broadcast test
●Small size, easy to carry
●Software easy to operate
Technical Parameters
Model No | LD-PC-BL1 | LD-PC-USB |
Brand | LAMMIN |
|
Input Signal | DALI signal |
|
Input Voltage | DC 5V |
|
Input Type | Bluetooth | USB |
Certification | CE |
|
Working Temp | -20℃~+50℃ |
|
Warranty | 3 years |
|
Size(L*W*H)MM | 75*70*23 |
|
Datasheet:
specification LD-PC-BL1.pdf
