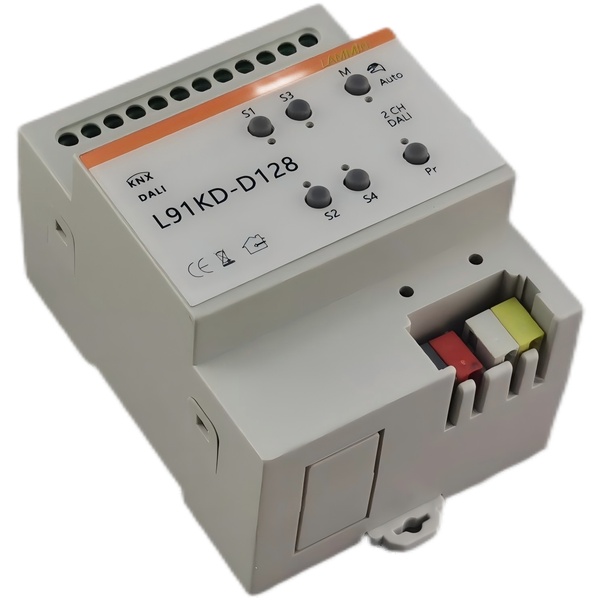

DALI gateway|KNX-DALI dual gateway|L91KD-D128

Profile

●The KNX/DALI gateway has 2 independent DALI channels to control 128 DALI devices

●Powered  by KNX  auxiliary power supply, Each  DALI channel can provide 16V 245mA DALI bus power when  input  24V DC power supply.

●All functions can be configured by DALI Master Software; such as set brightness values of the scene or scenarios;the allocation of devices in the groups;

Features

● Each channel can realize scene/group/group scene/single address/broadcast control l

●Two channels 2*64 single address devices all support switch/brightness/broadcast control/color temperature/color l

●16 DALI group addresses per channel support switch/brightness/broadcast control/color temperature/color l

●Support DALI 16 scene calls, through the corresponding KNX scene presetl

●Support 16 group scenes independent control, each group scene is controlled by KNX scene preset

● Color and color temperature are controlled independently, color temperature supports 7.600 DPT, color support 3 bytes of 232.600 RGB DPT l

●Color and color temperature support KNX control, support 6 bytes of 251.600 RGBW DPT l

●The gateway supports DALI Master software, and the DALI parameters of each channel can be independently configured

Technical Parameters

Datasheet:

specification L91KD-D128.pdf
