Profile

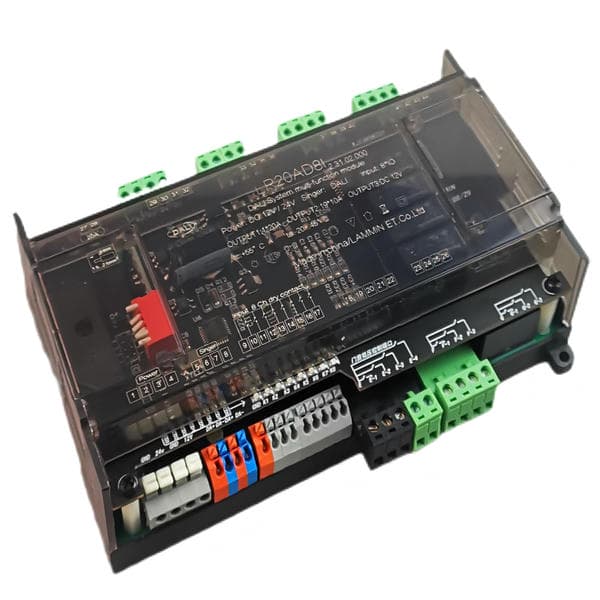

●DALI protocol multi-channel input and output module, with 8 dry contact inputs, 20 relay outputs
●With DALI communication interface, suitable as a room controller
●With a high-current 30A opening and closing relay, used to control the room sockets
●The functions can be configured and monitored by DALI master software.
Features
●Input standard DALI signal, can control motor and other inductive loads
●Magnetic holding relay, no power consumption after closing or disconnecting.
●Input and output logic can be set and configured by DALI master software.
● Quick connection terminal, easy to operate
● Relay anti-surge current 170A or more
Technical Parameters
Model No | LR20D8A |
Brand | LAMMIN |
Input Signal | 8*CH dry contact signal |
Input Voltage Range | DC12- 30V |
Output Power | 19*10A +1*30A |
Software | LAMMIN DALI Master Software |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 180*98*40 |
Installation | 35MM Din Rail |
Datasheet:
specification LR20D8A.pdf
