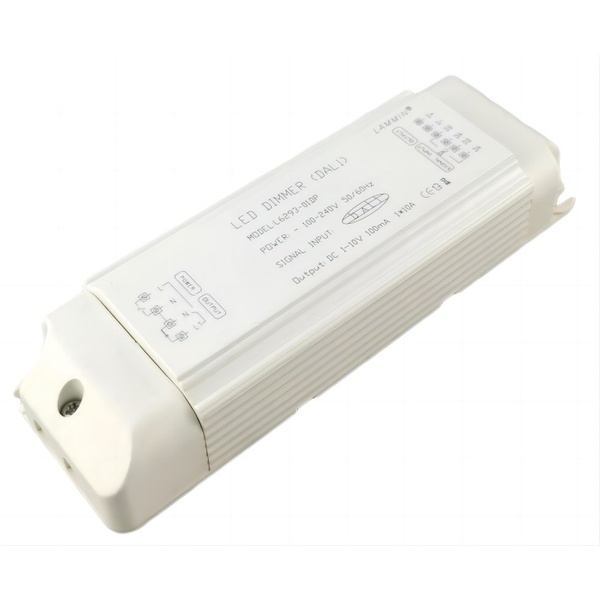

DALI relay|Single channel 1-10V with relay|L6293-01D(DC)|L6293-01DP(AC)
Profile
●DALI convert to 0/1-10V output and has a 10A relay inside.
●It can be controlled independently as a relay switch with 220V power supply
Features
●DALI signals comply with IEC 62386.
●Build in 10A relay switch
●DC 1-10V/10A output
●AC voltage input, safe and reliable
Technical Parameters
Model No | L6293-01DP | L6293-04DP | L6293-01D |
Brand | LAMMIN |
|
|
Input Signal | DALI signal |
|
|
Input Voltage | AC220V |
| DC 12-30v |
Frequency Range | 50Hz/60Hz |
|
|
Max Load Current | 10A/CH*1 | 10A/CH*4 | 10A/CH*1 |
Max Output Power | DC 1-10V | DC 1-10V/CH*4 | DC 1-10V |
Certification | CE |
|
|
Working Temp | -20℃~+50℃ |
|
|
Warranty | 3 years |
|
|
Size(L*W*H)MM | 140*45*28 | 126*88*65 | 140*45*28 |
Installation | 35mm DIN rail |
|
|
Datasheet:
specification L6293-01DP.pdf
