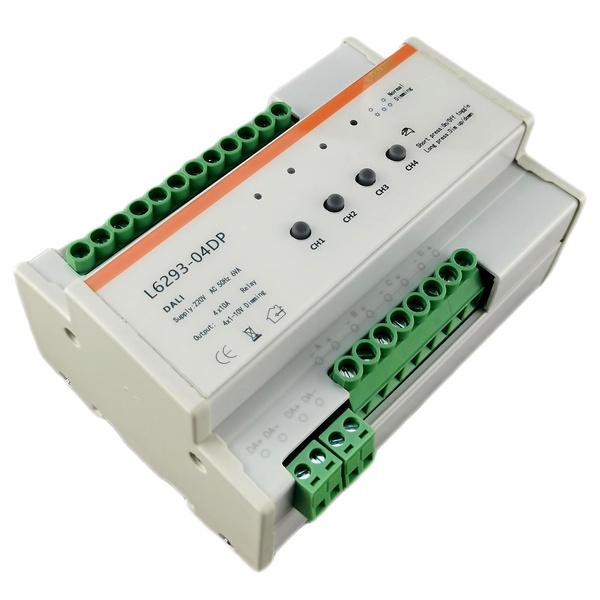

DALI relay|4 channel 1-10V with relay DALI dimmer|L6293-04DP
Profile
●DALI convert to 0/1-10V output with 10A relay inside.
●It can be controlled independently as a relay switch with 220V power supply
Features
●DALI signals comply with IEC 62386.
●Build in 10A relay switch
●4 channel *DC 1-10V/10A output
●AC voltage input, safe and reliable
Technical Parameters
Model No | L6293-04DP |
Brand | LAMMIN |
Input Signal | DALI signal |
Input Voltage | AC220V |
Output Voltage | AC 0-220V |
Frequency Range | 50Hz/60Hz |
Max Load Current | 10A/CH*4 |
Max Output Power | DC 1-10V/CH*4 |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 126*88*65 |
Installation | 35mm DIN rail |
Datasheet:
specification L6293-04DP.pdf
