Profile
●Dimming power amplifier adopt Trailing edge phase dimming.
●Input0/1-10V signal or KNX signal or DALI signal and convert into high power 0-230V dimming.
●Applicable for incandescent lamps, dimmable LED, and low-voltage halogen lamps with electronic transformer.
●Each channel output power up to 2000W.
Features

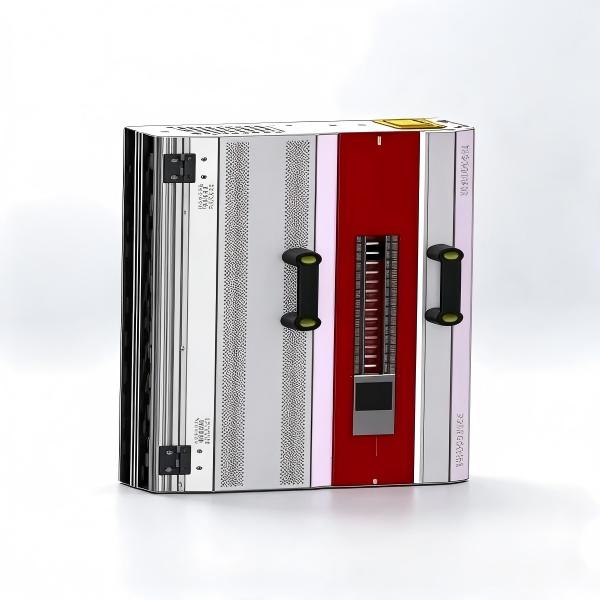

●Wall-mounted installation/built-in air switch/easy change channel card
●Independent circuit breaker protection/ Bypass switch ●Touch screen graphical interactive dimming operation ●Multiple temperature protection
●Short Circuit Protection for Loads
●Load open circuit and short circuit detection alarm
●Power supply line failure alarm
●Equipped with transparent air switch protection cover to prevent misoperation
Technical Parameters
Model No | LTX0810L-S | LTX0810K-S | LTX0810D-S |
Brand | LAMMIN | LAMMIN | LAMMIN |
Input Signal | 0/ 1 -10V signal | KNX signal | DALI signal |
Input Voltage | AC 220V-240V | AC 220V-240V | AC 220V-240V |
Output Voltage | AC 0-230V | AC 0-230V | AC 0-230V |
Frequency Range | 50 Hz | 50 Hz | 50 Hz |
Max Load Current | 10A/CH*8 | 10A/CH*8 | 10A/CH*8 |
Max Output | 2000W*8 | 2000W*8 | 2000W*8 |
Min Load | 25W per channel | 25W per channel | 25W per channel |
Certification | CE | CE | CE |
Working Temp | -20℃ ~ +50℃ | -20℃ ~ +50℃ | -20℃ ~ +50℃ |
Warranty | 5 years | 5 years | 5 years |
Size( L*W*H) MM | 329*366*145 | 329*366*145 | 329*366*145 |
Installation | Wall-mounted | Wall-mounted | Wall-mounted |
Datasheet:
specification LTX0810SV3.pdf
