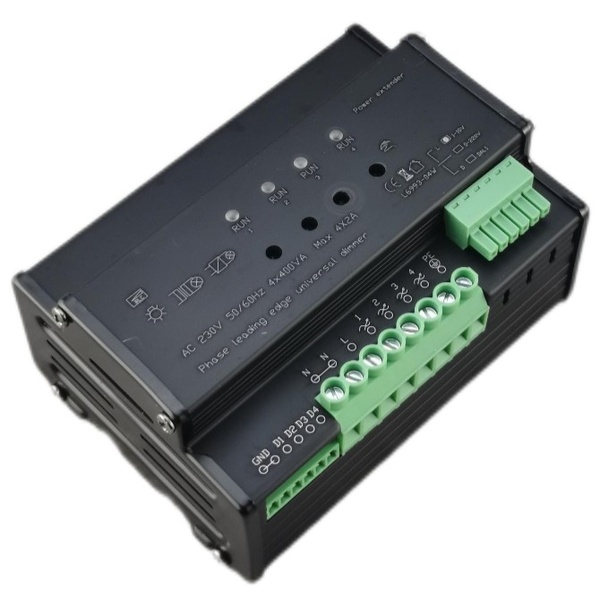

Profile
●Dimming power amplifier adopt leading edge phase dimming，input DALI signal and convert into high power 0-220V TRIAC dimming.
●Applicable for incandescent lamps, dimmable LED lamps, and low-voltage halogen lamps with electronic transformer.
●Each channel output power up to 400W.
Features
● Manual dimming button/plug signal terminal/over 1024 level dimming/
multiple temperature protection
●Signal input buffer design, smooth dimming, timing>=220us
●Short out protection, overload and over-voltage protection
●Long life cycle, small size and 35mm DIN-rail installation
●Signal input terminal plug design, easy connection
Technical Parameters
Model No | L6993-04WD |
Brand | LAMMIN |
Input Signal | DALI signal |
Input Voltage Range | AC 100-240V |
Frequency Range | 50/60Hz |
Max Load Current | 2A/CH*2 |
Max Output | 400W*4 |
Min Load | 40W |
Certification | CE UL |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 126*88*65 |
Installation | 35mm DIN rail |
Datasheet:
specification L6993-04WD.pdf
