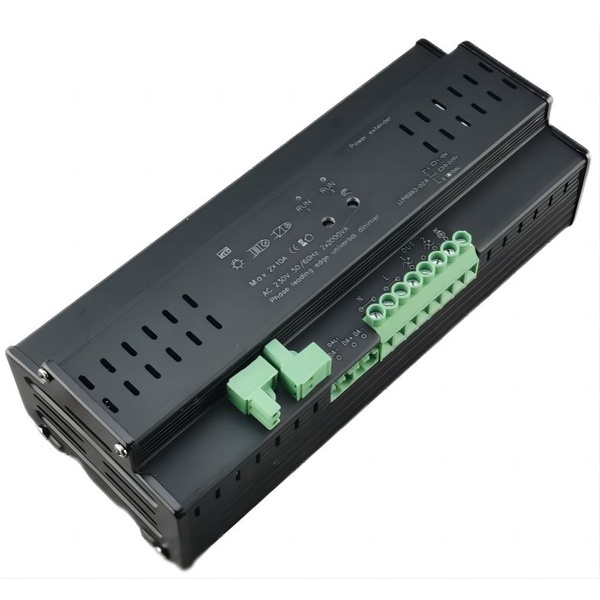

Profile
●Dimming power amplifier adopt leading edge phase dimming，input DALI signal and convert into high power 0-220V TRIAC dimming.
●Applicable for incandescent lamps, dimmable LED lamps, and low-voltage halogen lamps with electronic transformer.
●Each channel output power up to 2000W.
Features
●Manual dimming button/plug signal terminal/1024 level dimming/multiple temperature protection/flickerless
●Signal input buffer design, smooth dimming, timing>=220us
●Short out protection, overload and over-voltage protection
●Long life cycle, small size and 35mm DIN-rail installation
●Signal input terminal plug design, easy connection
Technical Parameters
Model No | L6993-02AD |
Brand | LAMMIN |
Input Signal | DALI signal |
Input Voltage | AC 220V |
Output Voltage | AC 0-220V |
Frequency Range | 50/60Hz |
Max Load Current | 10A/CH*2 |
Max Output | 2000W*2 |
Min Load | 40W |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 216*88*65 |
Installation | 35mm DIN rail |
Datasheet:
specification L6993-02AD.pdf
