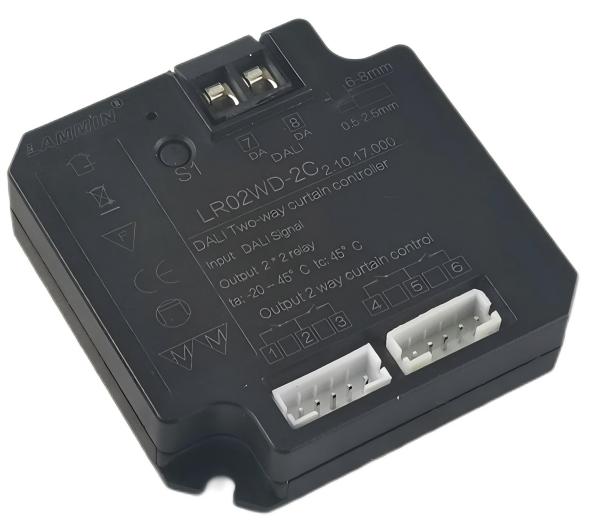

Profile
●2 channel curtain controller control the forward, reverse and stop of the motor by DALI signals.
●DALI bus power supply,built-in 2 channel coupler relays
●Two DALI device addresses, and independently open and close 2 curtains to open and close, and stop
Features
●Applicable for standard DALI signal and other inductive loads
●Bus power supply, no external power supply required
●Two curtains can be independently controlled to open and close and stop
●2A 60V coupler relay, low power consumption
●AC motor cannot be directly controlled
●Small size, can be installed in 86 bottom box
Technical Parameters
Model No | LR02WD-2C |
Brand | LAMMIN |
Input Signal | DALI signal |
Maximum switching voltage | 60VDC |
Max Load Current | 2A/CH*1 |
Bus current consumption | < 8 mA |
Max Load | <DC 60V <2A |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 50*50*12 |
Installation | 86 bottom box |
Datasheet:
specification LR02WD-2C.pdf
