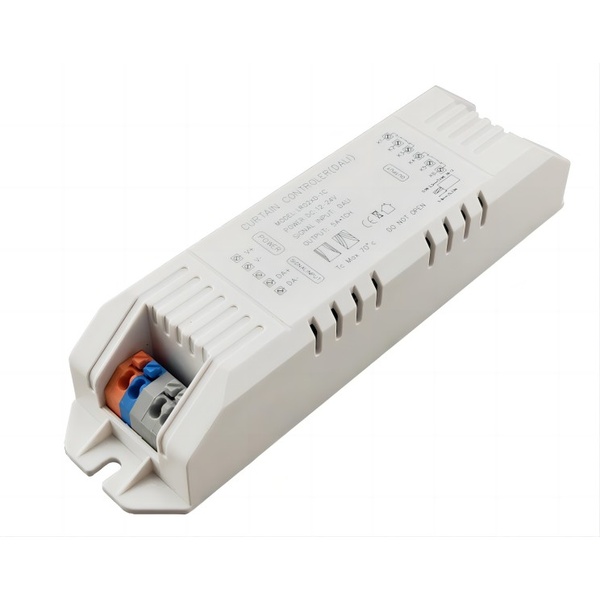

DALI actuator|2 channel 3A DALI curtain control module(DC Power)|LR02XD-2C
Profile
●2 channel curtain controller control the forward, reverse and stop of the motor by DALI signals.
●Motor forward and reverse rotation time can be set
●Output current of each channel can reach 5A.
Features
●Applicable for standard DALI signal and other inductive loads
●Wiring regardless of polarity, output with 5A switch
●Relay with status indicator
●Built-in AC - DC power relay, 0 to 220v power supply
Technical Parameters
Model No | LR02XD-2C |
Brand | LAMMIN |
Input Signal | DALI signal |
Input Voltage | DC12V/24V |
Frequency Range | 50/60Hz |
Max Load Current | 5A/CH* 1 |
Max Output | 5A 250VAC, 1000W, 3* 104 (fluorescent lamp)5 HP 250VAC 3* 104( motor load) |
Max Load | 600W* 2 |
Certification | CE |
Working Temp | -20℃ ~ + 50℃ |
Warranty | 3 years |
Size(L*W* H)MM | 155*40* 30 |
Installation | Φ 3 bolts |
Datasheet:
specification LR02XD-2C.pdf
