Profile
●High-power switch actuator can achieve high power switching control through DALI signal input
●Single loop max output power reach to 20A
●High-power magnetic latching relays
Features
●Applicable for standard DALI signal and other inductive loads
●Lamp load control capacity up to 5000W
●High-power magnetic latching relays, no power consumption
●Independent output terminal
●Can be operated manually, forcing the relay to open or close
●Anti-surge current capacity up to 500A/2ms
●The withstand voltage of the medium between the contact coils is more than 4kv
●Long life cycle, small size and DIN-rail installation,easy to install
Technical Parameters

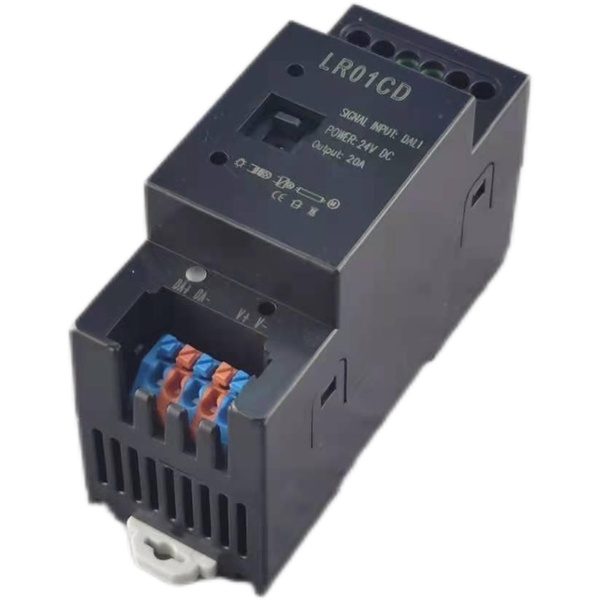

Model No | LR01CD |
Brand | LAMMIN |
Input Signal | DALI signal |
Input Voltage | AC 100-240V |
Switching Voltage | <440VAC |
Switching Current | 20A/50A |
Max Load Current | 20A/CH*1 |
Max Output | 50A 240VAC,5000W, 3*104 (fluorescent lamp)5HP 250VAC 3*104( motor load) |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 36*88*65 |
Installation | Flat mounting |
Datasheet:
specification LR01CD.pdf
