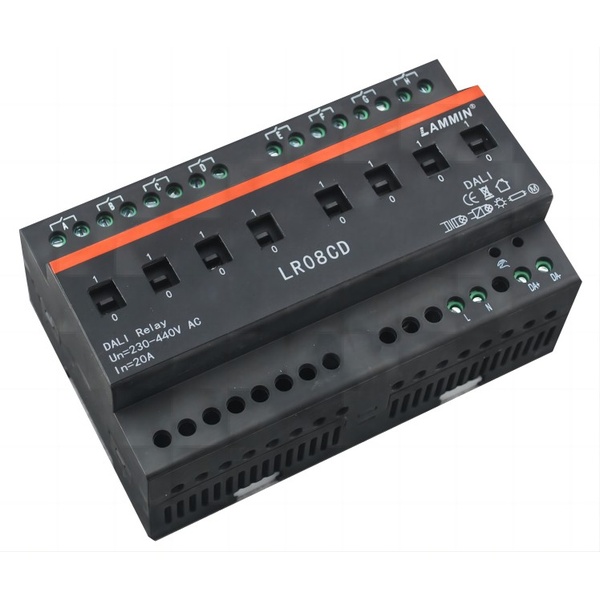

Profile
●High-power switch actuator can achieve high power switching control through DALI signal input
●8 channels with single loop max output power reach to 20A
●High-power magnetic latching relays
Features
●Applicable for standard DALI signal and other inductive loads
●High-power magnetic latching relays, no power consumption
●Power consumption, anti-surge current>170A
●Long life cycle, small size and DIN-rail installation,easy to install
●Relay manual operation is optional
●White or black metal shell
Technical Parameters
Model No | LR08CD | LR04CD | LR06CD | LR12CD |
Brand | LAMMIN |
|
|
|
Input Signal | DALI signal |
|
|
|
Input Voltage Range | AC 220V |
|
|
|
Frequency Range | 50/60Hz |
|
|
|
Max Load Current | 20A/CH*8 | 20A/CH*4 | 20A/CH*6 | 20A/CH*12 |
Max Output | 20A 250VAC,4000W, 3*104 (fluorescent lamp)5HP 250VAC 3*104( motor load) |
Min Load | 60W |
|
|
|
Certification | CE |
|
|
|
Working Temp | -20℃~+50℃ |
|
|
|
Warranty | 3 years |
|
|
|
Size(L*W*H)MM | 144*92*65 | 72*92*65 | 144*92*65 | 216*92*65 |
Installation | 35MM Din-rail |
|
|
|
Datasheet:
specification LR08CD.pdf
