KNX gateway|KNX-Modbus bidirectional gateway|L91KR-WGM
Profile
●KNX -RS485(Modbus) bidirectional converter is a RS485(Modbus) to KNX/EIB converter designed for intelligent building control systems
●Bidirectional communication, built-in 2000V anti-static protection.
●KNX-RS485(Modbus) converter can connect RS485(Modbus) devices with the devices on the EIB BUS to form the network system.
●The device on RS485(Modbus) sends the commands to the converter according to the protocol set by the configuration software to control the KNX device on the EIB BUS. Vice versa, you can convert corresponding KNX commands into RS485(Modbus);
Features
●KNX-RS485(Modbus) converter is bidirectional communication;
●The commands can be set by the configuration software
●Long life span with small size and convenient installation
Technical Parameters
Model No | L91KRM-WG | L91KRM-WGM |
Brand | LAMMIN |
|
Input Signal | KNX/EIB RS485 signal | KNX/EIB Modbus signal |
Input Voltage | DC 30V |
|
Output Signal | RS485 KNX/EIB signal | RS485 KNX/EIB signal |
Certification | CE |
|
Working Temp | -20℃~+50℃ |
|
Warranty | 3 years |
|
Size(L*W*H)MM | 39*88*65 |
|
Installation | 35mm DIN rail |
|

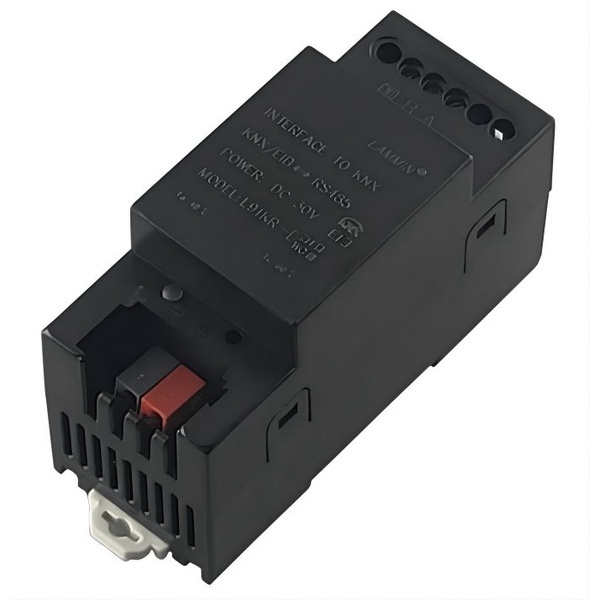

Photo |  |
Datasheet:
specification L91KR-WGM.pdf
